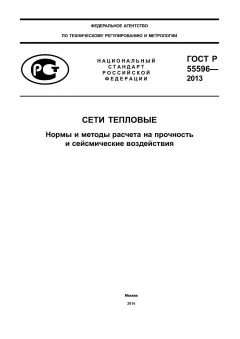

GOST R 55596-2013 PDF

Full title and description

GOST R 55596-2013 — "Сети тепловые. Нормы и методы расчета на прочность и сейсмические воздействия" / "District heating systems. Standard for the stress and seismic analysis". National Russian standard that sets rules, calculation methods and normative values for strength and seismic design of district (centralized) heating pipelines and associated elements.

Abstract

This standard establishes requirements, calculation procedures and normative loads for the strength and seismic assessment of district heating networks: buried and above-ground piping, flexible steel corrugated and flexible polymer pipelines, and associated elements from heat sources to building inlet valves. It covers classification of loads, allowable stresses, wall thickness and joint strength checks, calculations of thermal and seismic impacts, support spacing and examples for flexible lines.

General information

• Status: Active / In force (introduced for the first time).
• Publication date: Approved 25 October 2013; introduced (effective) 1 May 2014 (publication editions show mid‑2014).
• Publisher: Federal Agency for Technical Regulation and Metrology (Rosstandart), Russian Federation.
• ICS / categories: Construction / Heating networks and pipelines; OKС (classifier) 23.040.01 — hydraulic and pneumatic systems and components for general use (district heating networks).
• Edition / version: GOST R 55596-2013 (first edition).
• Number of pages: Approximately 80 pages (page count may vary by printing/translation; some editions list 80–82 pages).

Scope

The standard applies to newly designed, manufactured and reconstructed district heating pipelines and systems including: steel hot-water pipelines with working pressures up to 2.5 MPa and temperatures up to 200 °C; steel steam pipelines with working pressures up to 4.0 MPa and temperatures up to 250 °C (specified category); flexible steel corrugated water pipelines up to 1.6 MPa and 150 °C; and flexible polymer (e.g., PE/PEX) water pipelines up to 1.0 MPa and 95 °C. It covers aerial (in channels, urban and intra-block tunnels, above-ground) and buried (trenchless) network layouts and defines strength and seismic design methods from heat source outlet valves to building inlet valves (heat points).

Key topics and requirements

• Classification of loads and impacts (thermal, pressure, operational, wind, snow, seismic and accidental loads).
• Normative loads and rules for combining loads for strength and seismic checks.
• Allowable stresses and safety factors for pipe materials and welded joints; coefficients for welded joint strength.
• Procedures to calculate required and nominal wall thickness for pipeline elements under pressure, temperature and external loads.
• Methods for seismic analysis of pipeline systems, including dynamic/seismic coefficients, support reactions and allowable displacements.
• Design guidance for flexible pipelines (steel corrugated and polymeric), including examples, calculation methods and recommended spacing of intermediate supports.
• Requirements for strength and leak-tightness checks of flanged and other joints under combined loads.
• Annexes with recommended procedures and worked examples (including flexible “Kasaflex” steel corrugated lines and PE‑X pipelines).

Typical use and users

Used by mechanical and civil engineers, pipeline and district heating system designers, utility companies, surveyors and constructors involved with thermal networks, manufacturers of piping systems and fittings, regulatory authorities and technical auditors. It is applied during design, manufacturing, reconstruction and technical assessment of district heating pipelines where strength and seismic resistance must be demonstrated.

Related standards

Commonly referenced and related documents include national and industry norms for pressure equipment and piping strength calculation (for example, GOST R 52857 series), GOST 30732-2006 (pre‑insulated pipes), RD and PB design rules for steam/hot‑water pipelines and power-industry piping, and Russian seismic and load standards and building codes such as SP 14.13330.x and SP 20.13330.x. The standard is used alongside other national pipeline and construction regulations when designing heating networks.

Keywords

district heating; heating networks; thermal networks; pipeline strength; seismic analysis; flexible corrugated pipes; polymer pipes; wall thickness calculation; allowable stresses; support spacing; GOST R 55596-2013.

FAQ

Q: What is this standard?

A: GOST R 55596-2013 is a Russian national standard that defines norms and calculation methods for strength and seismic analysis of district heating networks and associated piping elements.

Q: What does it cover?

A: It covers design and reassessment rules for steel, flexible steel corrugated and polymeric heating pipelines (pressure and temperature limits specified), classification and combination of loads, allowable stresses, wall thickness and joint checks, seismic calculation methods, support spacing and illustrative calculation examples.

Q: Who typically uses it?

A: Pipeline and district heating designers, consulting engineering firms, utilities, constructors, component manufacturers and regulatory/inspection bodies engaged in design, manufacture, reconstruction and technical assessment of heating networks.

Q: Is it current or superseded?

A: As published it was approved in October 2013 and introduced in 2014; it is listed as active/in force in available normative libraries. Users should confirm the current status in the official Rosstandart registry or national standards database before relying on it for regulatory compliance or procurement, since amendments or newer editions may be published after this summary.

Q: Is it part of a series?

A: It is a standalone national standard for district heating but is typically used together with related GOST and industry standards (for strength calculations, piping elements and insulation) and with Russian construction/seismic codes (SP/SNiP) that govern loads and seismic design.

Q: What are the key keywords?

A: District heating, heating networks, pipelines, seismic analysis, strength calculation, flexible pipes, polymer pipes, GOST R 55596-2013.
