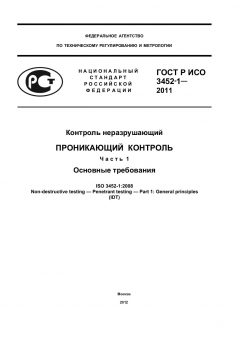

GOST R ISO 3452-1-2011 PDF

Full title and description

GOST R ISO 3452-1-2011 — Non‑destructive testing. Penetrant testing. Part 1. General principles. This national adoption reproduces the international standard that defines the general principles and method for liquid penetrant testing to detect surface‑open discontinuities (cracks, laps, porosity, lack of fusion, etc.).

Abstract

This document specifies penetrant testing methods used primarily on metallic materials (and on other materials that are inert to test media and not excessively porous) to reveal surface‑open discontinuities. It covers process and control testing requirements and provides guidance on technique, but it does not give acceptance criteria or address suitability of specific test systems or detailed test equipment specifications.

General information

• Status: National (GOST R) adoption of ISO 3452‑1; the underlying ISO edition (ISO 3452‑1:2013) has been superseded by ISO 3452‑1:2021 at the international level, while catalog entries for the GOST R adoption list the document as issued under the 2011 designation and published 01 Jan 2013.
• Publication date: Listed in commercial catalogs as 1 January 2013 (GOST R ISO 3452‑1‑2011 — national publication date shown as 01.01.2013).
• Publisher: Russian national standardization body (GOST R / Rosstandart) as the adopting organization for the national publication; original international work by ISO/TC 135.
• ICS / categories: 19.100 — Non‑destructive testing.
• Edition / version: Designation: GOST R ISO 3452‑1‑2011 (national adoption of the ISO text corresponding to ISO 3452‑1 edition published in 2013).
• Number of pages: Commercial listings and catalogues record about 20–26 pages depending on the published print/translation; many vendor listings show 20 pages for the GOST R edition and 22–26 pages for the ISO edition.

Scope

Specifies a general method for penetrant testing to detect surface‑open discontinuities in test items. The standard is applicable mainly to metallic materials (castings, forgings, welds, etc.) and may be applied to other materials provided they are compatible with the test media and not highly porous. The document addresses test technique, process and control testing, and inspection/interpretation guidance but is not intended to set acceptance criteria or to specify suitability of particular penetrant systems or equipment.

Key topics and requirements

• Principles and objectives of penetrant (dye) testing for surface‑open defects.
• Types of penetrant methods (visible/fluorescent, water‑washable, post‑emulsifiable, solvent‑removable) and basic selection guidance.
• Surface preparation, application of penetrant, dwell/contact time and removal techniques.
• Use of developers, inspection conditions (lighting, viewing procedures) and interpretation of indications.
• Process and control testing (quality checks, process verification) and limitations (not for acceptance criteria).
• Safety, handling and material compatibility notes for test media (general guidance; detailed product properties are covered in related parts/standards).

Typical use and users

Primary users include nondestructive testing (NDT) technicians and inspectors, QA/QC engineers, testing laboratories, and certification/inspection bodies in industries such as aerospace, automotive, oil & gas, pressure equipment manufacture, metal fabrication and welding inspection. The standard is used to establish or harmonize penetrant testing procedures and process controls in production and maintenance environments.

Related standards

ISO 3452 is a series; related parts include ISO 3452‑2 and ISO 3452‑3 which cover materials and methods for penetrant testing products and their properties. Personnel qualification and certification in NDT is covered by standards such as ISO 9712 (qualification and certification of NDT personnel). National/regional adoptions (EN/DIN/GOST) may exist for the same ISO texts.

Keywords

GOST R, ISO 3452‑1, penetrant testing, dye penetrant, liquid penetrant, nondestructive testing, NDT, surface discontinuities, penetrant method, inspection, Rosstandart, GOST R ISO.

FAQ

Q: What is this standard?

A: It is the Russian national adoption (GOST R) of the ISO document for penetrant testing titled “Non‑destructive testing — Penetrant testing — Part 1: General principles,” designated GOST R ISO 3452‑1‑2011 for the national publication.

Q: What does it cover?

A: It defines the general principles, method steps and process/control guidance for liquid penetrant testing used to reveal surface‑open discontinuities; it addresses technique, surface preparation, penetrant application and removal, developer use, inspection and interpretation, but it does not set acceptance criteria or prescribe suitability of individual test systems.

Q: Who typically uses it?

A: NDT technicians and inspectors, QA/QC engineers, testing laboratories, maintenance and production inspection teams, and certification bodies across heavy industry, aerospace, automotive, and fabrication sectors.

Q: Is it current or superseded?

A: The international ISO edition corresponding to this text (ISO 3452‑1:2013) has been superseded by a later ISO revision (ISO 3452‑1:2021). National catalog entries show the GOST R designation as issued under the 2011 code with a publication listing in 2013; users should verify whether a more recent national adoption or replacement (for example later GOST or St ISO editions) applies in their jurisdiction before relying on the document for regulatory or contractual compliance.

Q: Is it part of a series?

A: Yes — ISO 3452 is a multipart series. Part 1 covers general principles; other parts (ISO 3452‑2, ISO 3452‑3, etc.) address characteristics, test methods and properties of penetrant testing materials and related procedures.

Q: What are the key keywords?

A: Penetrant testing, dye penetrant, liquid penetrant, NDT, surface discontinuities, penetrant method, developer, inspection, GOST R, ISO 3452‑1.
