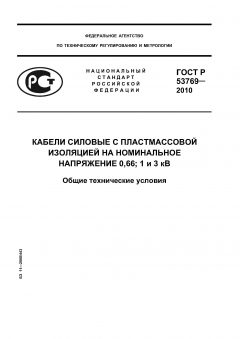

GOST R 53769-2010 — "Кабели силовые с пластмассовой изоляцией на номинальное напряжение 0,66; 1 и 3 кВ. Общие технические условия" (English: Power cables with plastic insulation for rated voltages of 0.66; 1 and 3 kV — General specifications). The document sets general technical requirements for the design, materials, marking and testing of stationary power cables with plastic (extruded) insulation intended for these nominal voltage bands.

Abstract

This national standard provided unified requirements for construction, insulation and sheath materials, conductor types and cross-sections, required electrical and mechanical tests, marking and quality verification for power cables intended for stationary installation at nominal voltages 0.66, 1 and 3 kV. It aligned cable technical parameters with international practice (references to IEC requirements) and supplied the basis for subsequent interstate standardization.

General information

• Status: Withdrawn / cancelled (replaced by a later interstate standard).
• Publication date: 2010 (approved mid‑2010; introduced on 1 July 2010 for publication and put into effect from 01.01.2011 in applied practice).
• Publisher: National standard of the Russian Federation (approved via the Federal Agency on Technical Regulating and Metrology / Rosstandart procedures).
• ICS / categories: OКС / MКC classification for cables — 29.060.20 (cables).
• Edition / version: 2010 (GOST R 53769‑2010).
• Number of pages: Approximately 41–42 pages (published editions and vendor copies list 41–42 pages depending on formatting).

Scope

The standard applied to stationary power cables with plastic (extruded) insulation intended for transmission and distribution in installations with nominal alternating voltages of 0.66 kV, 1 kV and 3 kV (50 Hz). It covered constructional types used in general industrial, civil and certain special applications, defined permissible conductor materials and cross‑sections, insulation and sheath materials and thicknesses, environmental and temperature operating ranges, and specified mandatory test methods and acceptance criteria.

Key topics and requirements

• Definition of cable types and nominal voltage bands (0.66, 1 and 3 kV) and intended application (stationary installations).
• Requirements for conductor materials and construction (single‑core and multicore options, allowable cross‑section ranges and stranded/solid conductor forms).
• Insulation material specifications and minimum/nominal insulation thickness rules (harmonised with IEC practice for extruded insulation).
• Outer sheath material types and fire/smoke behaviour classifications (including low‑smoke / non‑propagating flame options where applicable).
• Electrical and mechanical test methods: dielectric tests, impulse and AC withstand, conductor resistance, longitudinal and transverse water penetration, mechanical bending and tensile tests, aging and thermal tests.
• Marking, documentation and factory inspection requirements (marking scheme, identification of core(s), voltage rating, manufacturer and technical conditions reference).
• Service and environmental conditions (operating temperature ranges, routing/installation recommendations and expected service life guidance).

Typical use and users

Manufacturers of power cables, design and engineering departments, procurement and quality departments in utilities and industry, testing laboratories, certification bodies and installation contractors use the standard as a technical reference when specifying, producing, testing and accepting power cable products for stationary electrical installations. The document was also used by technical committees and developers of factory technical conditions (TU) for specific cable types.

Related standards

Key related and successor standards include the interstate standard ГОСТ 31996-2012 (Power cables with plastic insulation for rated voltages of 0.66; 1 and 3 kV — general specifications), which succeeded and consolidated national rules into an interstate document. The standard also referenced international norms such as IEC 60502‑1 (and related CENELEC harmonised documents) and earlier national documents (e.g., ГОСТ 16442‑80 and ГОСТ R 53768‑2010) in the same domain.

Keywords

power cables, plastic insulation, extruded insulation, 0.66 kV, 1 kV, 3 kV, cable construction, insulation thickness, sheath, cable testing, marking, GOST R 53769‑2010, ГОСТ Р 53769‑2010.

FAQ

Q: What is this standard?

A: GOST R 53769‑2010 is a Russian national standard that specified general technical requirements for power cables with plastic (extruded) insulation intended for nominal voltages 0.66, 1 and 3 kV.

Q: What does it cover?

A: It covers cable construction, conductor and insulation materials, insulation thickness rules, outer sheath types and fire characteristics, required electrical and mechanical tests, marking and documentation, and other acceptance criteria for stationary power cables in the stated voltage bands.

Q: Who typically uses it?

A: Cable manufacturers, electrical designers, quality and procurement specialists, test laboratories, certification bodies and installation contractors. It was also referenced by organizations drafting technical specifications (TU) for particular cable types.

Q: Is it current or superseded?

A: Superseded. GOST R 53769‑2010 was replaced in practice by the interstate standard ГОСТ 31996‑2012 (introduced 01.01.2014); the national GOST R 53769‑2010 is therefore considered withdrawn/cancelled for current regulatory application.

Q: Is it part of a series?

A: It formed part of a family of cable-related national documents (including ГОСТ R 53768‑2010 and earlier ГОСТ 16442‑80) and was used as the technical basis for the later interstate standard ГОСТ 31996‑2012; it also cross‑references applicable IEC documents (notably IEC 60502‑1).

Q: What are the key keywords?

A: Power cables, plastic insulation, extruded insulation, nominal voltage 0.66 kV / 1 kV / 3 kV, cable tests, insulation thickness, sheath, marking, GOST.
