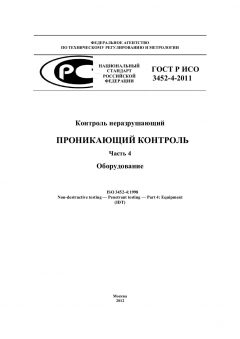

GOST R ISO 3452-4-2011 PDF

Full title and description

GOST R ISO 3452-4-2011 — "Non-destructive testing. Penetrant testing. Part 4. Equipment". National adoption of ISO 3452-4:1998; establishes requirements and recommendations for equipment used when performing liquid penetrant (penetrant) testing, including both on-site portable equipment and stationary installations.

Abstract

This standard specifies the characteristics and arrangements of equipment required for penetrant testing processes: cleaning and degreasing, application of penetrant, draining, removal of excess penetrant (spray or immersion), emulsification (where applicable), drying, developer application and drying, inspection lighting (including UV-A for fluorescent penetrants), collection and handling of process fluids, ventilation and safety measures. It is intended to ensure repeatable, safe and effective penetrant inspection installations and portable setups.

General information

• Status: Active (introduced as a national standard of the Russian Federation; listed as действующий / введён впервые).
• Publication date: Designated 2011 (approved by Rosstandart order 13 December 2011 No. 1114‑ст); date of introduction (effective date) 1 January 2013.
• Publisher: Federal Agency for Technical Regulation and Metrology (approval by Rosstandart); printed publication issued by Standartinform (Moscow, 2012).
• ICS / categories: 19.100 — Non‑destructive testing (testing equipment and methods).
• Edition / version: First Russian adoption (IDT) — identical to ISO 3452-4:1998.
• Number of pages: 12 (PDF/electronic format).

Scope

Defines requirements for equipment used in penetrant (liquid penetrant) testing for detection of surface‑open discontinuities. Covers portable equipment for field inspections and fixed/stationary installations for workshop or production environments. Includes provisions for preparation and cleaning, application and removal of penetrant, emulsification (when used), developer application, inspection lighting (white light and UV‑A), fluid containment and recycling arrangements, ventilation and occupational safety considerations. The standard is intended to be used in conjunction with other parts of the ISO 3452 series that address principles, materials testing and reference test blocks.

Key topics and requirements

• Types of equipment and their intended application: on‑site portable kits vs. stationary installations for batch or continuous processing.
• Cleaning/degreasing equipment and procedures; requirements for degreasing stations and methods compatible with environmental and emission rules.
• Penetrant application methods: spraying (air, airless, electrostatic), brushing, immersion — and associated spray booths, ventilation and collection trays.
• Drainage, removal and rinsing stations: design of tanks, spray systems, low‑pressure rinsing requirements and temperature control for rinse water.
• Emulsification and developer application equipment: tanks for immersion, spray or mechanical agitation where required; systems for aqueous and solvent‑based developers.
• Drying systems (hot‑air ovens, centrifugal dryers) and requirements to avoid condensation or oxidation during drying.
• Inspection lighting: requirements for white light for visible dyes and UV‑A (black light) for fluorescent penetrants; design guidance for inspection booths and lighting placement.
• Containment, waste handling and safety: trays, sumps and collection for contaminated liquids, recommendations on exhaust and emissions, and protective equipment for operators.

Typical use and users

Used by non‑destructive testing (NDT) laboratories, quality and inspection departments in manufacturing and maintenance (aerospace, automotive, power generation, petrochemical, heavy engineering), suppliers and manufacturers of penetrant testing equipment, and certification/accreditation bodies. The standard guides equipment selection, workshop layout and safe process design for routine penetrant inspection programs.

Related standards

Directly related to other parts of the ISO/GOST R 3452 series: GOST R ISO 3452-1-2011 (Part 1: General principles), GOST R ISO 3452-2-2009 (Part 2: Testing of penetrant materials), GOST R ISO 3452-3-2009 (Part 3: Reference test blocks), and to ISO 3452-5 / 3452-6 (temperature‑specific guidance). Also used alongside NDT personnel qualification standards (e.g., ISO 9712) and national regulations on emissions and workplace safety.

Keywords

penetrant testing, liquid penetrant, non‑destructive testing (NDT), equipment, inspection lighting, UV‑A, developer, emulsification, degreasing, stationary installation, portable kit, GOST R, ISO 3452-4.

FAQ

Q: What is this standard?

A: GOST R ISO 3452-4-2011 is the Russian national adoption (identical translation/IDT) of ISO 3452-4:1998, specifying equipment requirements for liquid penetrant (penetrant) non‑destructive testing.

Q: What does it cover?

A: It covers equipment and installations used for preparation, penetrant application, removal and drying, developer application, inspection lighting (including UV‑A for fluorescent penetrants), containment and waste handling, ventilation and related safety measures for both field and workshop penetrant testing.

Q: Who typically uses it?

A: NDT technicians and engineers, inspection and quality managers, equipment manufacturers and laboratory accreditation/inspection bodies in industries that perform penetrant testing (aerospace, automotive, metallurgy, oil & gas, power generation, etc.).

Q: Is it current or superseded?

A: As adopted in Russia, GOST R ISO 3452-4-2011 was approved in December 2011 and introduced 1 January 2013 and is listed in Russian standards catalogues as действующий (active). The underlying international document is ISO 3452-4:1998 (the text adopted by Russia); users should verify if a newer international revision or national amendment has been published after this adoption.

Q: Is it part of a series?

A: Yes — it is Part 4 of the ISO/GOST R 3452 series on penetrant testing. Other parts cover general principles (Part 1), testing of penetrant materials (Part 2), reference test blocks (Part 3), and temperature‑specific procedures (Parts 5 and 6).

Q: What are the key keywords?

A: Penetrant testing, liquid penetrant, NDT equipment, inspection lighting, UV‑A, developer, emulsifier, degreasing, stationary installation, portable inspection kit, GOST R, ISO 3452.
